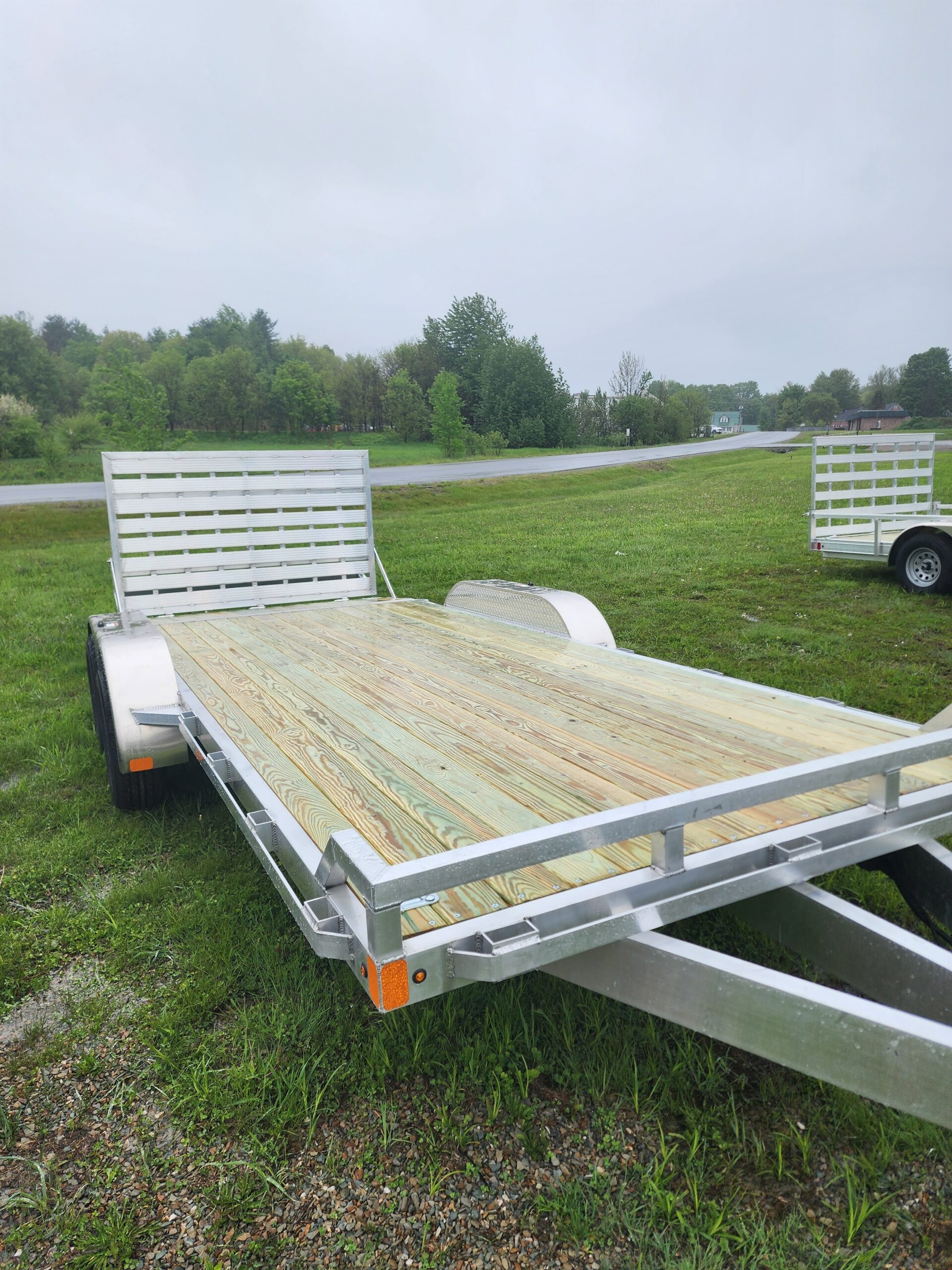

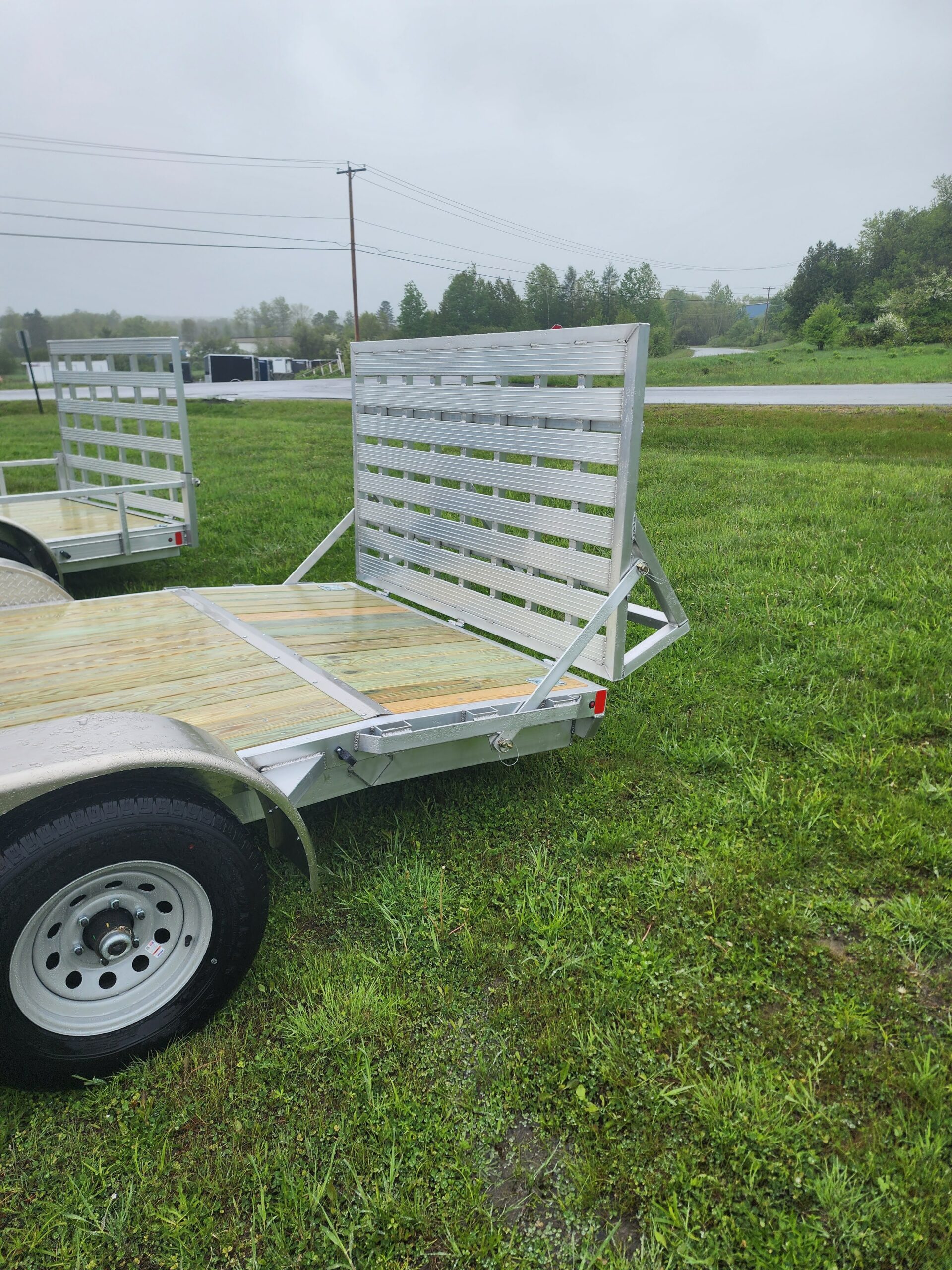

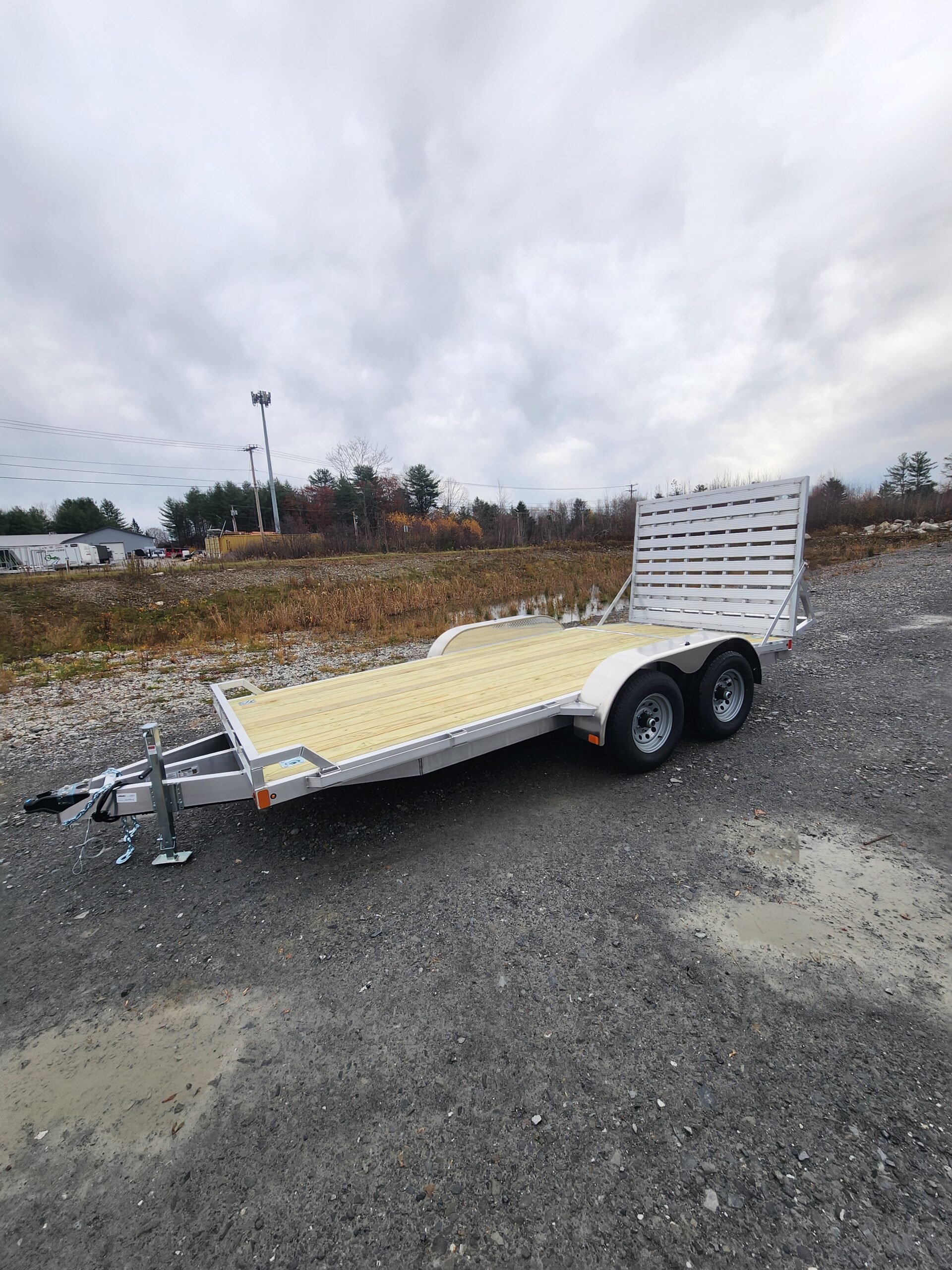

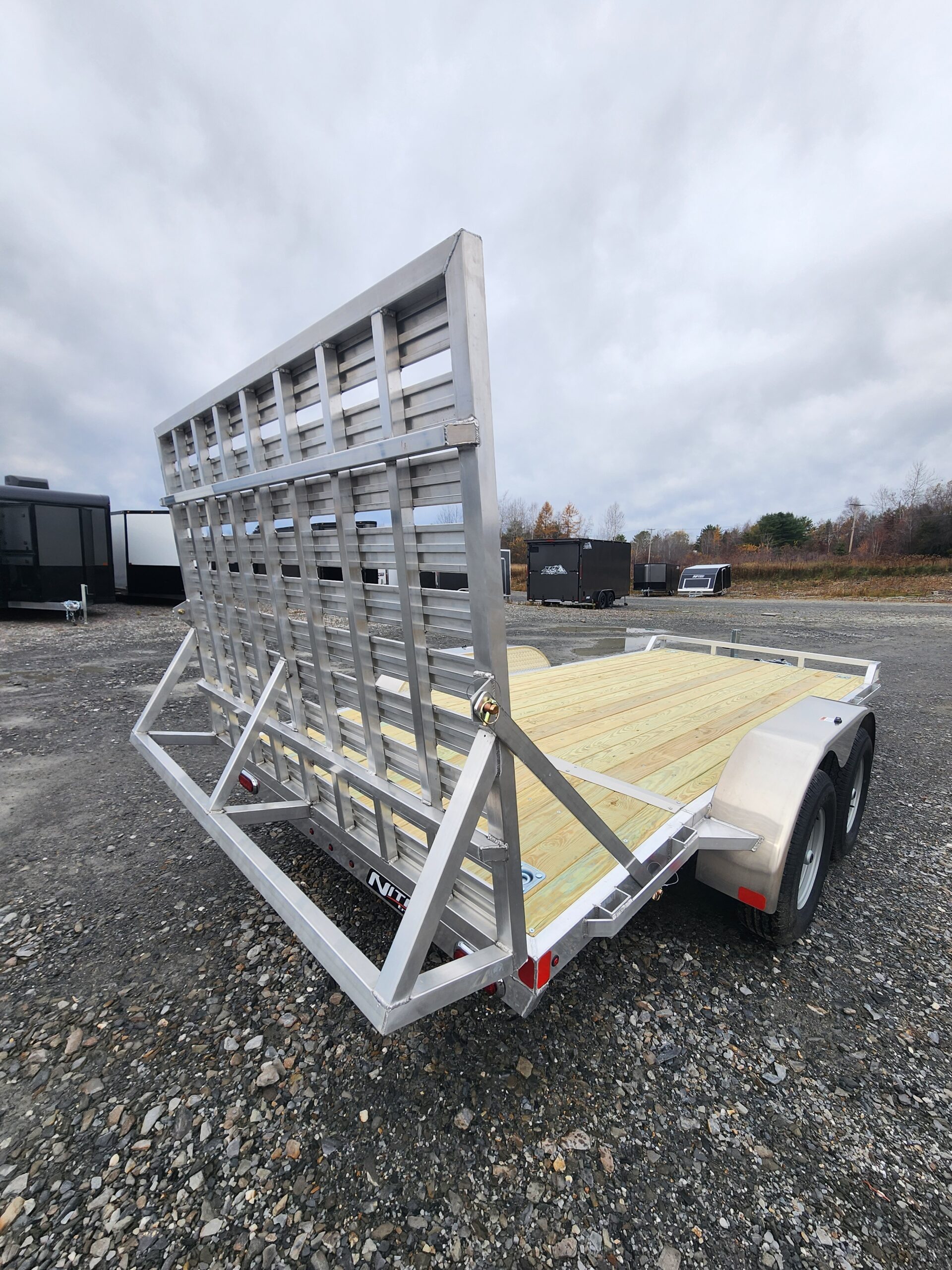

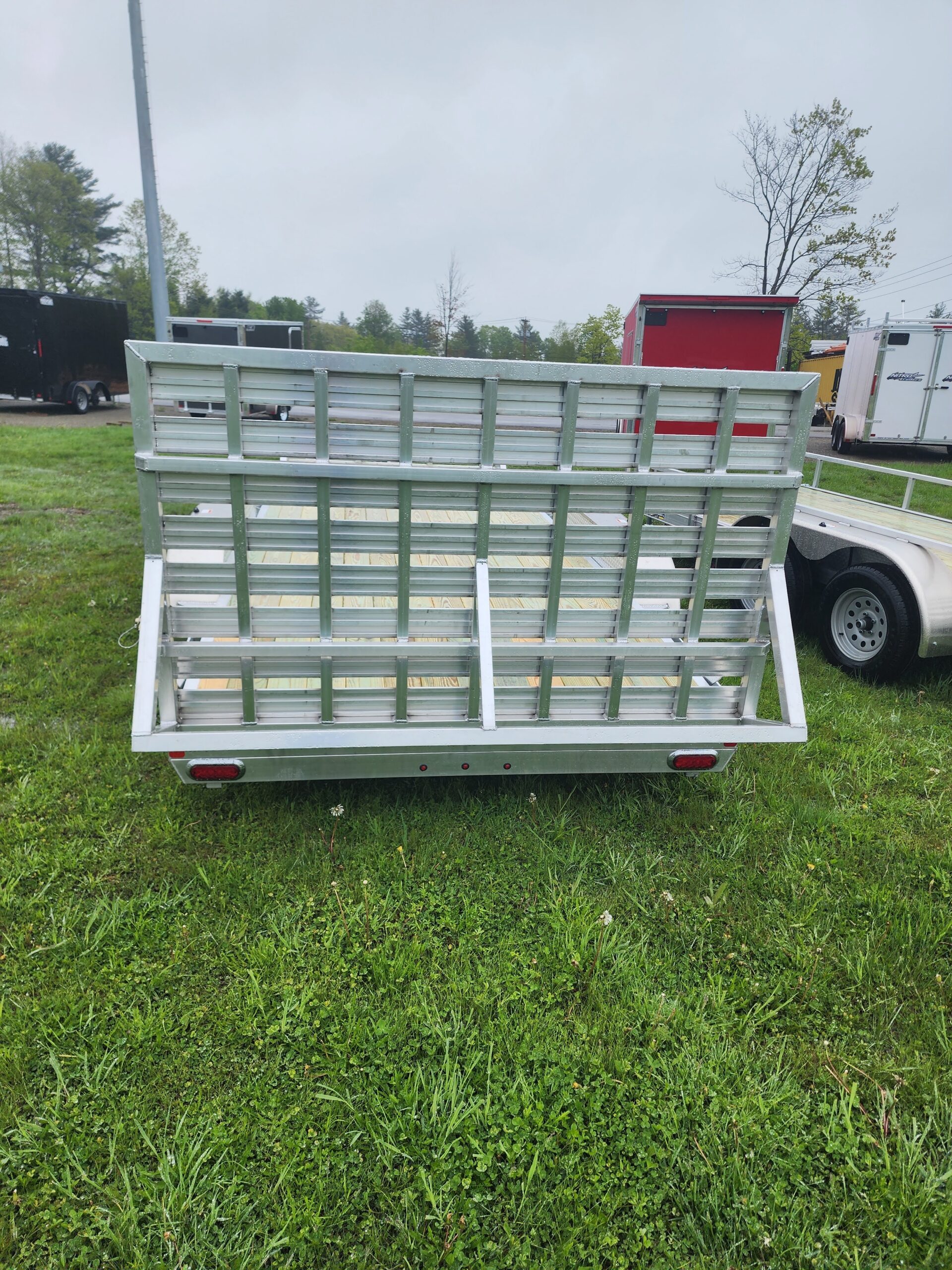

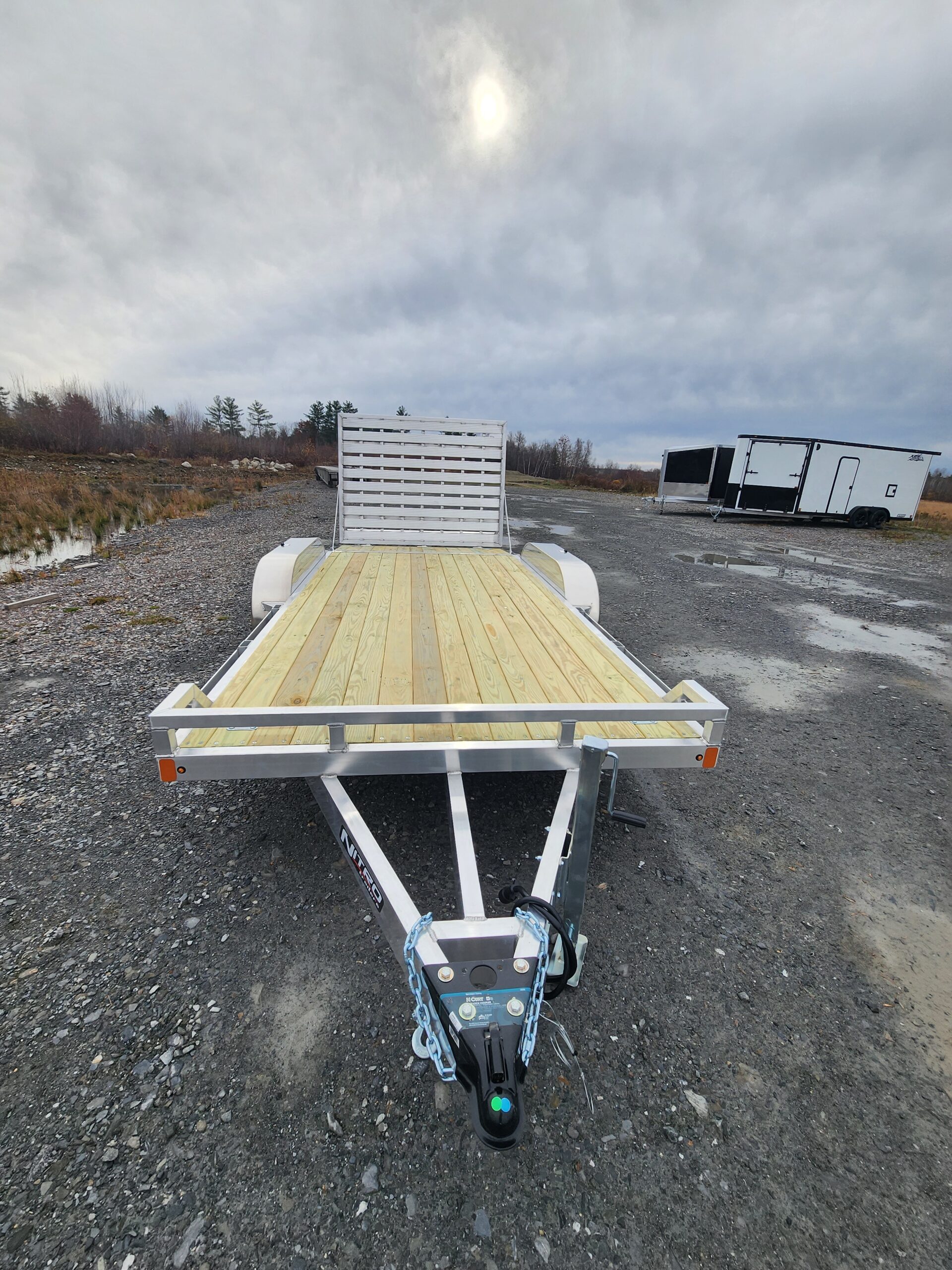

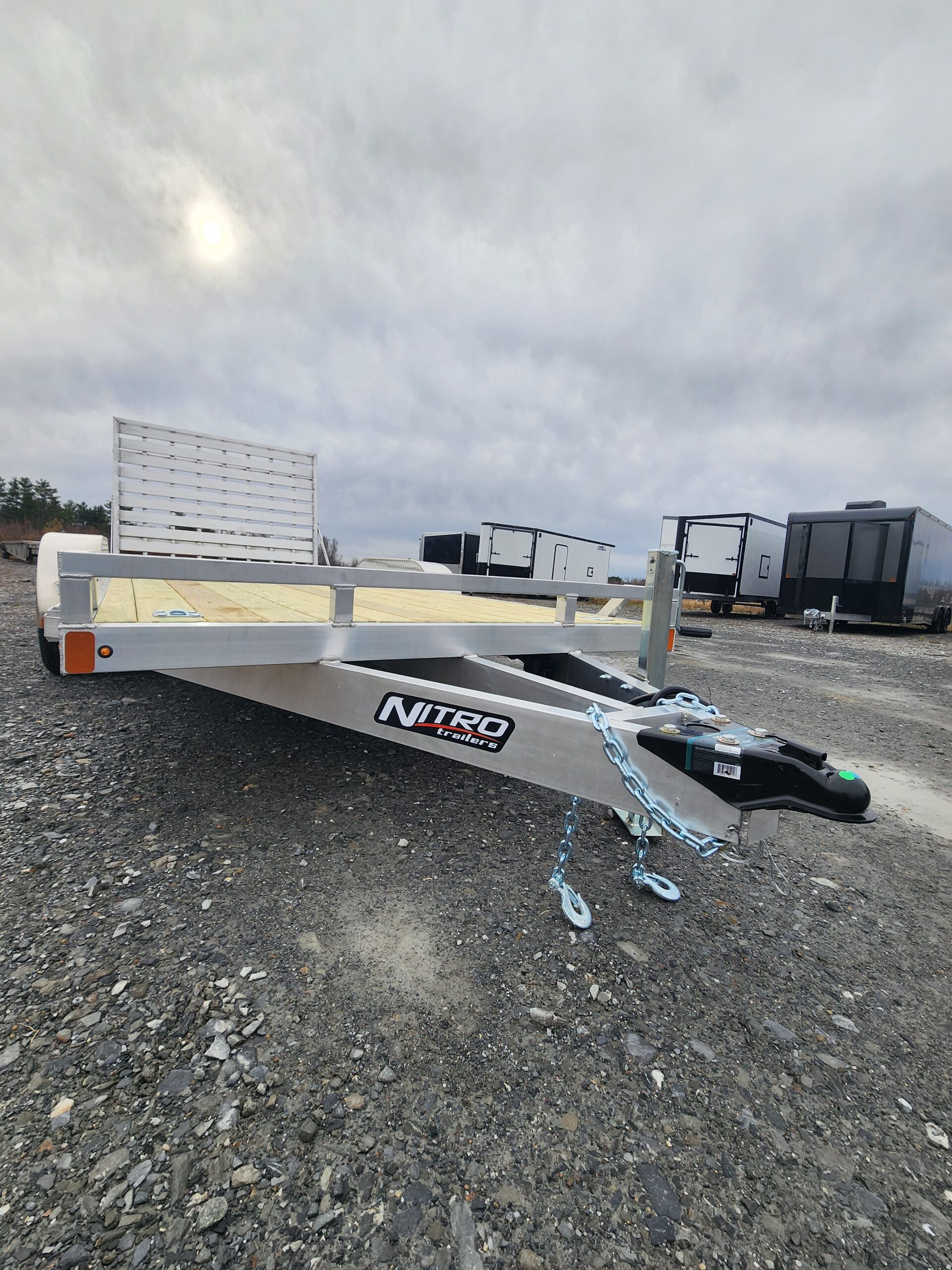

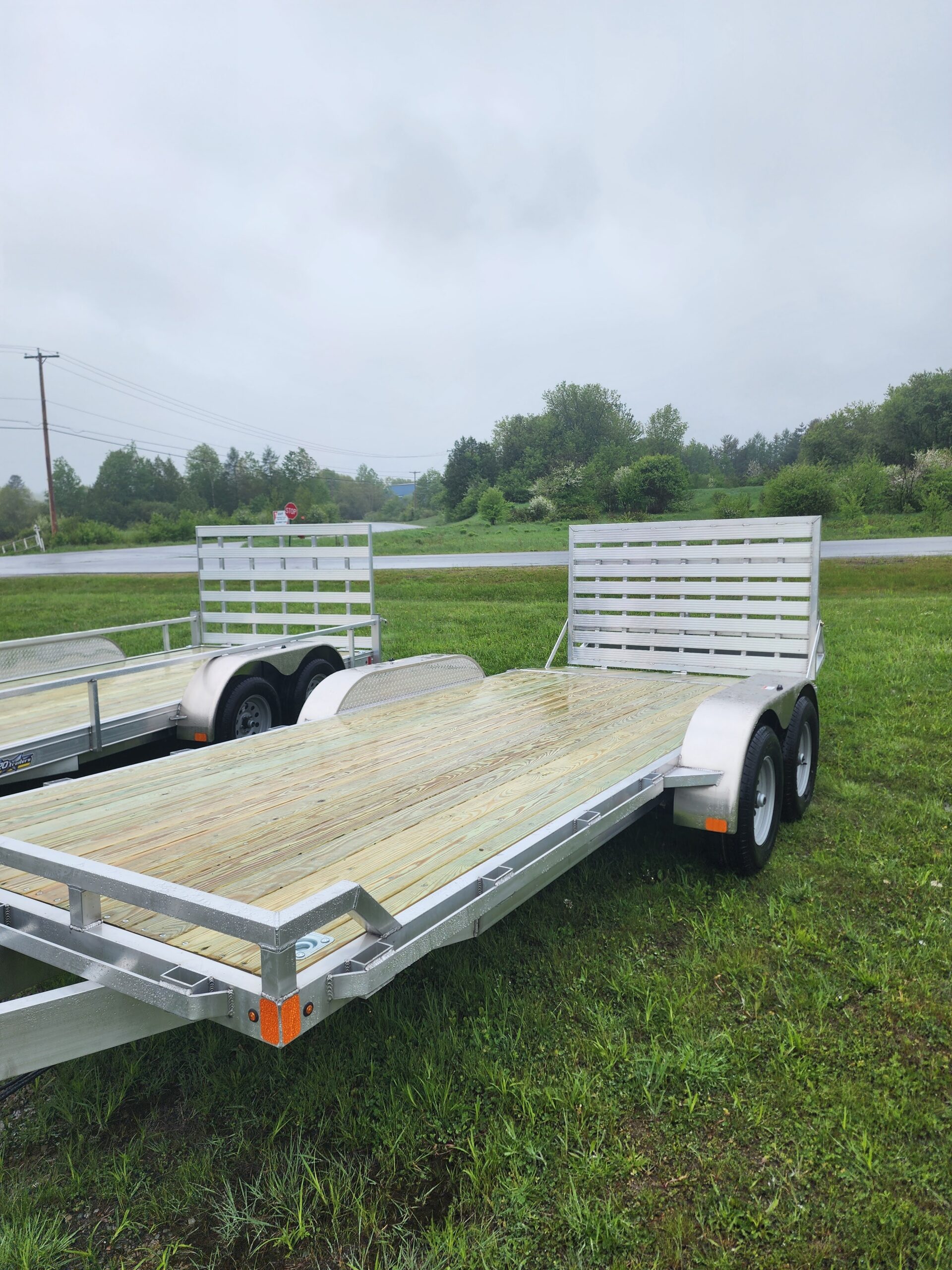

Our Heavy Equipment Trailers are built for strength, with a 10,000-pound load rating and all-aluminum welds. They feature a flip-down ramp gate or split ramps with a footer for heavy-duty loading. Standard wood plank decking is included, with an optional rugged aluminum decking upgrade. Flush-mount D-rings are located in all corners for secure tie-downs. While a rear beavertail is not standard, it is available as an optional add-on for easier loading.
Standard Options:
• All Aluminum Construction
• LED Lighting
• Torsion Axles
• Pocketed Rub Rail
• Drop Leg Jack 12″
• O/C5/4″
• Pressure Treated Decking
• 2 5/16″ Coupler
• Full Rear Ramp Gate w/ Foot
• Front Bump Rail
• 4X HD Recessed D-Rings
*Some images shown with options. See a dealer for more options, pricing and availability.
| Model | HDL 6.5X14 | HDL 6.5X16 | HDL 6.5X18 | HDL 6.5X20 | HDL 6.5X22 | HDL 6.5X24 |
|---|---|---|---|---|---|---|
| Axle Rating | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K |
| Tires | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 |
| Decking | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT |
| GVWR | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs |
| Curb Weight | 1,700lbs | 1,900lbs | 2,100lbs | 2,300lbs | 2,500lbs | 2,700lbs |
| Payload | 8,290lbs | 8,090lbs | 7,890lbs | 7,690lbs | 7,490lbs | 7,290lbs |
